Cabling between the Multiplexer and the Pick-Up Control

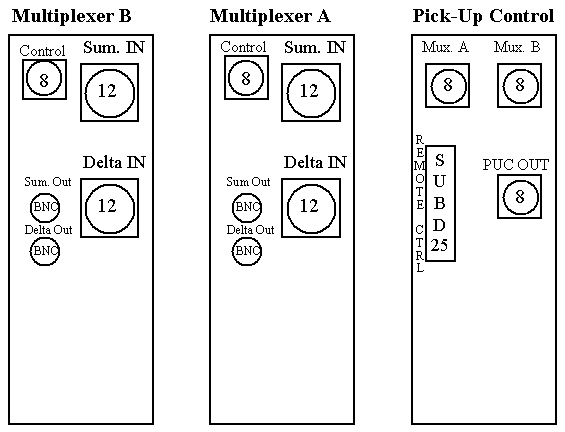

The PCB's from behind :
Cable between the Pick-Up Control and the Multiplexer A
From : Pick Up Control | To : Multiplexer A | ||||
Type of cable: 6*0.25 m2 | |||||
Connector name: Control A | Connector name: Mux. A | ||||
Connector type: 8 pole Burndy (male) | . | Connector type: 8 pole Burndy (male) | . | ||
Pin : | Color: | Pin | Description | ||
1 | White | 1 | a0 Channel select (LSB) | ||
2 | Pink | 2 | a1 Channel select | ||
3 | Yellow | 3 | a2 Channel select | ||
4 | Green | 4 | a3 Channel select (MSB) | ||
5 | . | . | nc. | ||
6 | Brown & Gray | 6 | GND | ||
7 | . | . | nc. | ||
8 | . | . | nc. |
Cable between the Pick-Up Control and the Multiplexer B
From : Pick Up Control | To : Multiplexer B | ||||
Type of cable: 6*0.25 m2 | |||||
Connector name: Control B | Connector name: Mux. B | ||||
Connector type: 8 pole Burndy (male) | . | Connector type: 8 pole Burndy (male) | . | ||
Pin : | Color: | Pin | Description | ||
1 | White | 1 | b0 Channel select (LSB) | ||
2 | Pink | 2 | b1 Channel select | ||
3 | Yellow | 3 | b2 Channel select | ||
4 | Green | 4 | b3 Channel select (MSB) | ||
5 | . | . | nc. | ||
6 | Brown & Gray | 6 | GND | ||
7 | . | . | nc. | ||
8 | . | . | nc. |
To see : Cable between the Multiplexer and the Connection box (not bal.)
