The cabling in the Connections Box
The connection box receives 16 (not. balanced) signals from the pick-ups
which is joint in four eight poled Burndy connectors. Add to this that the box
splits the test signal from the generator in eight out going signals.
Cabling in the connection box to ELISA's pickup control (not. Balanced)
Input connection | Output connection | ||||
From: Pick-Up amplifier BPM | To: Multiplexer | ||||
BNC in (not. Balanced) | 8 pole Burndy connector | ||||
PU-1 | Description | To | PU1-OUT | Description | Pin |
1 H | Input PU1-out, pin 1 & 2 * | 1 H | 1 | ||
. | nc. | 1 H | 2 | ||
1 V | Input PU1-out, pin 3 & 4 * | 1 V | 3 | ||
. | nc. | 1 V | 4 | ||
1 H | Input PU1-out, pin 5 & 6 * | 1 H | 5 | ||
. | nc. | 1 H | 6 | ||
1 V | Input PU1-out, pin 7 & 8 * | 1 V | 7 | ||
. | nc. | 1 V | 8 | ||
BNC in (not. Balanced) | 8 pole Burndy connector | ||||
PU-2 | Description | To | PU2-OUT | Description | Pin |
2 H | Input PU2-out, pin 1 & 2 * | 2 H | 1 | ||
. | nc. | 2 H | 2 | ||
2 V | Input PU2-out, pin 3 & 4 * | 2 V | 3 | ||
. | nc. | 2 V | 4 | ||
2 H | Input PU2-out, pin 5 & 6 * | 2 H | 5 | ||
. | nc. | 2 H | 6 | ||
2 V | Input PU2-out, pin 7 & 8 * | 2 V | 7 | ||
. | nc. | 2 V | 8 | ||
BNC in (not. Balanced) | 8 pole Burndy connector | ||||
PU-3 | Description | To | PU3-OUT | Description | Pin |
3 H | Input PU3-out, pin 1 & 2 * | 3 H | 1 | ||
. | nc. | 3 H | 2 | ||
3 V | Input PU3-out, pin 3 & 4 * | 3 V | 3 | ||
. | nc. | 3 V | 4 | ||
3 H | Input PU3-out, pin 5 & 6 * | 3 H | 5 | ||
. | nc. | 3 H | 6 | ||
3 V | Input PU3-out, pin 7 & 8 * | 3 V | 7 | ||
. | nc. | 3 V | 8 | ||
BNC in (not. Balanced) | 8 pole Burndy connector | ||||
PU-4 | Description | To | PU4-OUT | Description | Pin |
4 H | Input PU4-out, pin 1 & 2 * | 4 H | 1 | ||
. | nc. | 4 H | 2 | ||
4 V | Input PU4-out, pin 3 & 4 * | 4 V | 3 | ||
. | nc. | 4 V | 4 | ||
4 H | Input PU4-out, pin 5 & 6 * | 4 H | 5 | ||
. | nc. | 4 H | 6 | ||
4 V | Input PU4-out, pin 7 & 8 * | 4 V | 7 | ||
. | nc. | 4 V | 8 |

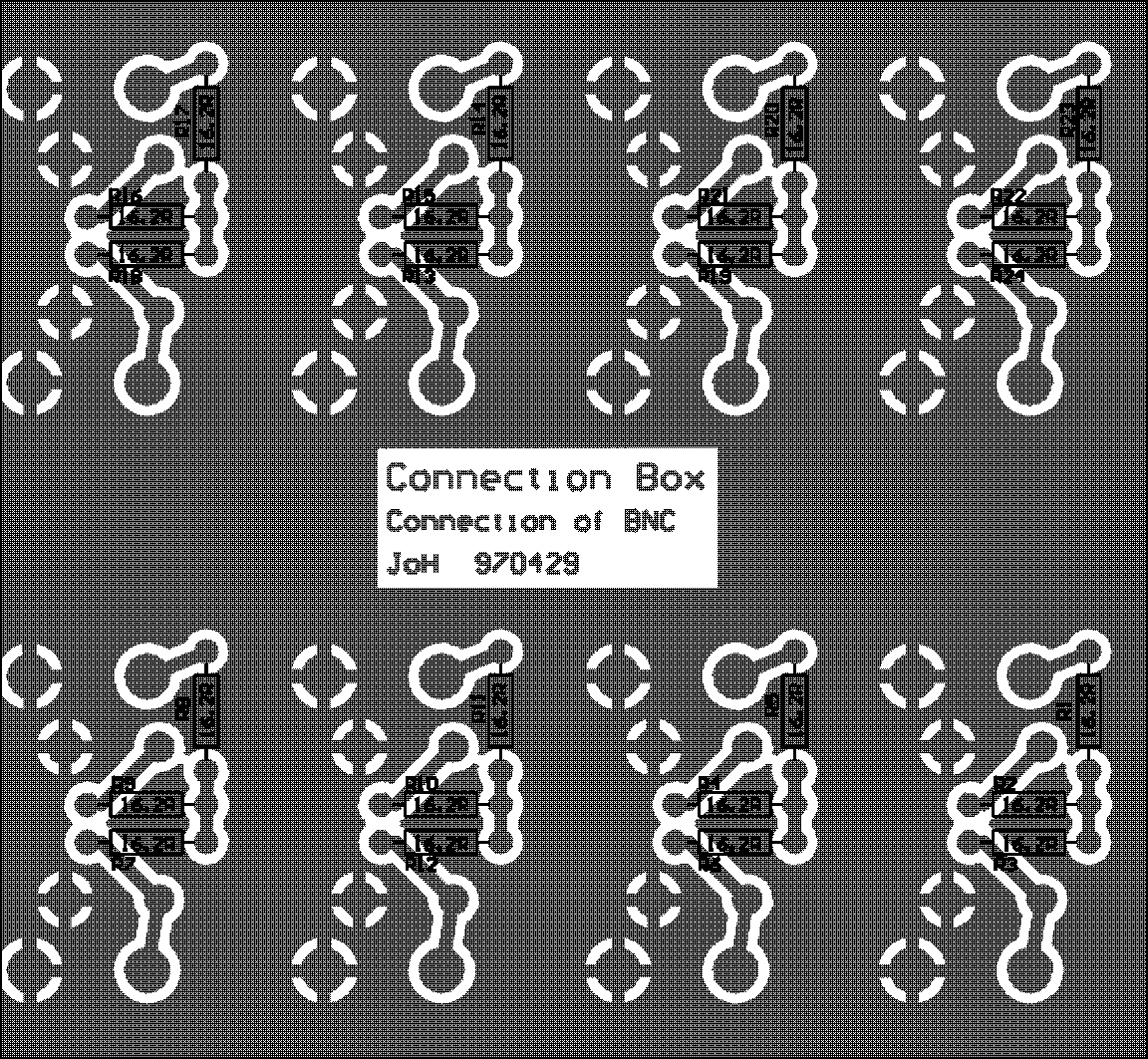

* 50's impedance matched, with is made on a PCB.GIF (48k) , for download PCB protel files (204k.)
The splitting of the control signal (PUC IN) out in eight connectors (PUC 1 PUC 8) :
PUC IN | . | . | PUC 1 | PUC 2 | PUC 3 | PUC 4 | PUC 5 | PUC 6 | PUC 7 | PUC 8 |
Pin | Description | To : | Pin | Pin | Pin | Pin | Pin | Pin | Pin | Pin |
1 | GND | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
2 | +24V | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
3 | nc. | nc. | nc. | nc. | nc. | nc. | nc. | nc. | nc. | |
4 | TEST- | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
5 | TEST COM | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
6 | TEST+ | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
7 | +6V | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | |
8 | -6V | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
The splitting of the Valve Control (MV 1-3 IN) out in connectors (MV-1 out MV-3 out) :
MV 1-3 IN | . | . | MV-1 OUT | MV-2 OUT | MV-3 OUT |
Pin | Description | To : | Pin | Pin | Pin |
1 | GND | 1 | 1 | 1 | |
2 | GND | 1 | 1 | 1 | |
3 | MV-1 (out) | 5 | . | . | |
4 | MV-1 (status out) | 3 | . | . | |
5 | MV-1 (status in) | 4 | . | . | |
6 | MV-2 (out) | . | 5 | . | |
7 | MV-2 (status out) | ./ | 3 | . | |
8 | MV-2 (status in) | . | 4 | . | |
9 | MV-3 (out) | . | . | 5 | |
10 | MV-3 (status out) | . | . | 3 | |
11 | MV-3 (status in) | . | . | 4 | |
12 | nc. | . | . | . | |
Power +24V | +24V (out) | 2 | 2 | 2 | |
Power GND | GND (out) | 1 | 1 | 1 |
The splitting of the Valve Control (MV 4-6 IN) out in connectors (MV-4 out MV-6 out) :
MV 4-6 IN | . | . | MV-4 OUT | MV-5 OUT | MV-6 OUT |
Pin | Description | To : | Pin | Pin | Pin |
1 | GND | 1 | 1 | 1 | |
2 | GND | 1 | 1 | 1 | |
3 | MV-4 (out) | 5 | . | . | |
4 | MV-4 (status out) | 3 | . | . | |
5 | MV-4 (status in) | 4 | . | . | |
6 | MV-5 (out) | . | 5 | . | |
7 | MV-5 (status out) | . | 3 | . | |
8 | MV-5 (status in) | . | 4 | . | |
9 | MV-6 (out) | . | . | 5 | |
10 | MV-6 (status out) | . | . | 3 | |
11 | MV-6 (status in) | . | . | 4 | |
12 | nc. | . | . | . | |
Power +24V | +24V (out) | 2 | 2 | 2 | |
Power GND | GND (out) | 1 | 1 | 1 |

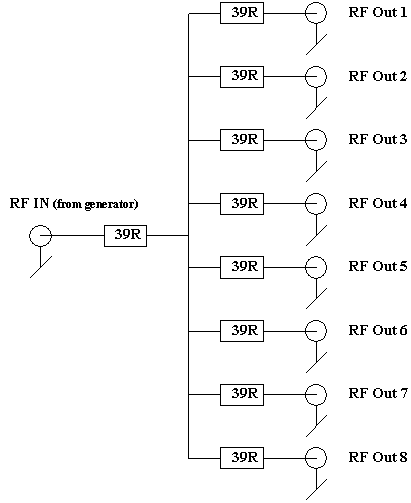

The splitting of the generator signal out in eight signals :
A view over the connetions from and to the Connetion Box
